Print current pageProduct Description
- brief introduction

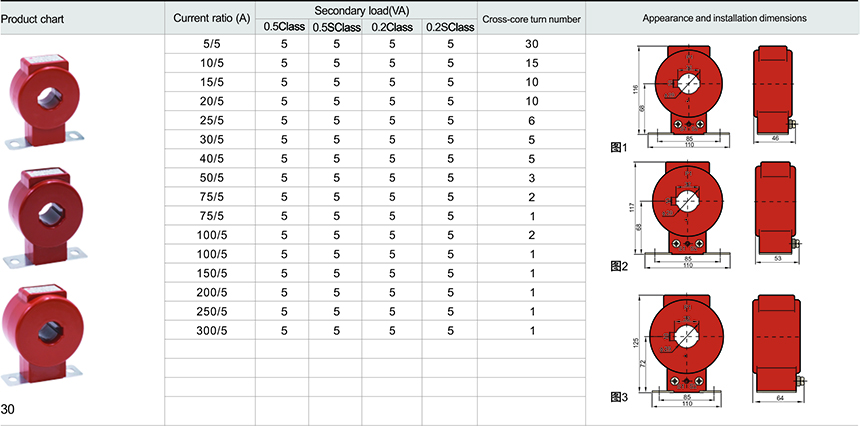

- technical parameter

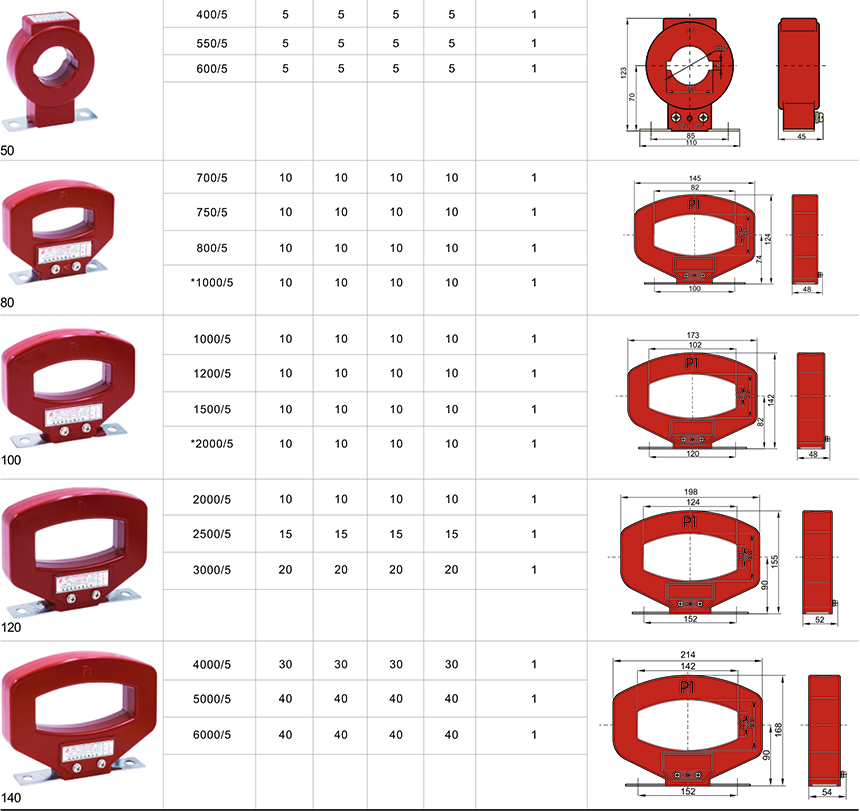

- Product size
Application?
LMZJ1-0.5 type current transformer is mainly used for indoor, for rated voltage up to and including 0.5kV, rated frequency 50Hz AC circuit as the electric current and electric energy measurement and relay protection, product adopts casting insulation, adopting bottom fixed installation.
Standard: GB20840

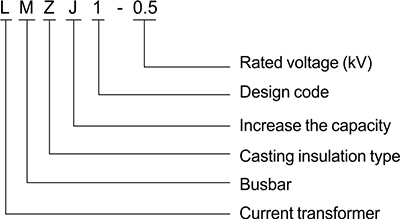

Code and implication?
Normal working/installation conditions
1. ?Installation sites: Indoor
2. ?Ambient temperature : (-5~40)℃
3. Ambient humidity: ≤80%
4. Altitude: ≤1000m
5. Atmospheric conditions: no serious impurity?in the atmosphere.
Ordering instructions
When the customer ordering, must provide the following information:
1,product model and Install the bus width;
2, current ratio;
3, rated output, and the corresponding accurate level;
For example: solid order LMZJ1-0.5, rated output current ratio 600/5 A and 5 VAAccurate magnitude 0.5 magnitude of transformer.
The order code for LMZJ1-0.5 600/5 5 va a magnitude of 0.5.
4, if you have special requirements, can be customized consultation with the manufacturer.
The installation accessories
